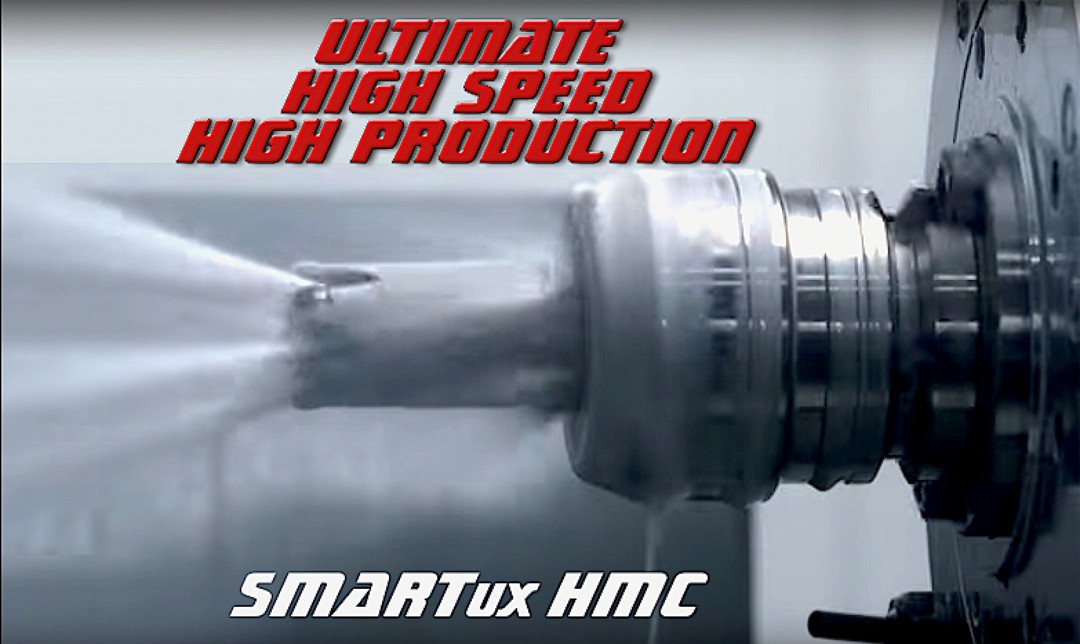

ULTIMATE HIGH-SPEED
HIGH-PRODUCTION HORIZONTAL MACHINING CENTER
Engineering Challenge:
To design and manufacture a very high-speed and high-production Horizontal Machining Center, utilizing CAD designed Rock Solid heavily ribbed meehanite castings and featuring a one piece bed with built-in raised step cross ways and very widely spaced ways throughout.
CINCINNATI MACHINES SMARTux Series Ultimate High-Speed High-Production Horizontal Machining Centers provide new standards of speed, power, and productivity. Check out some of these specifications:
Rapid Traverse rates up to 3,000ipm
Feed Rates up to 1,600ipm
Spindle Speeds up to 20,000rpm
Spindle Drives up to 50hp
Choice of Spindle noses from Cat40 to BIG PLUS
Up to 220 Tools
5-Second Pallet Change Time
Up to 1200lb pallet load capacity
8800lb Pallet Clamping Force
Up to 1,000psi Coolant
Cincy-Fanuc Mpro CNC with Fanuc Ai
Positioning Accuracy to 0.00019”
Repeatability to 0.00011”
Production features are too numerous to list here, but see more in the full brochure here:
